Model No: JE9120

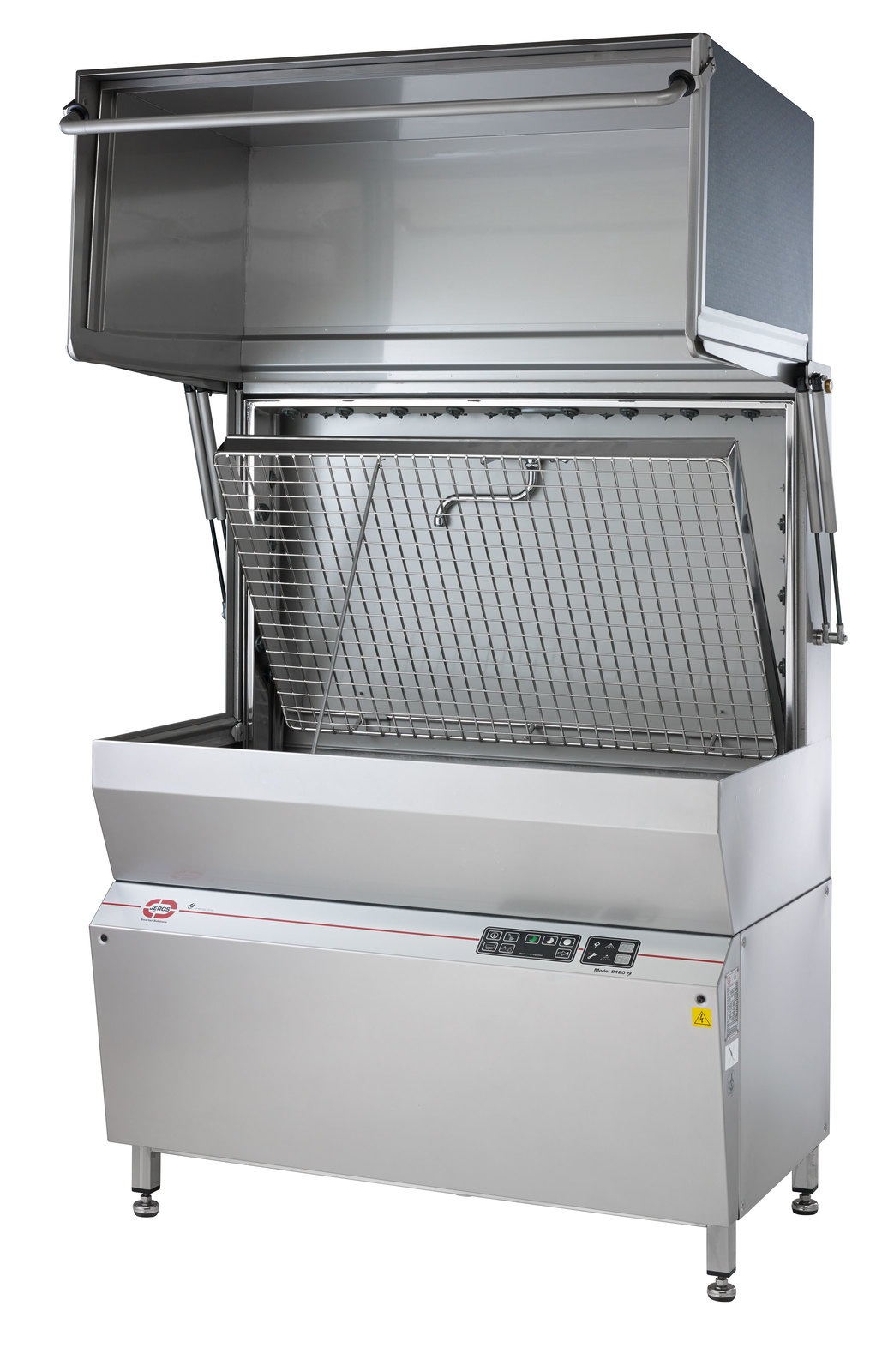

Jeros JE 9120 Utensil Tray Washer
Utensil tray washer. Perfect for bakeries, supermarkets and food manufacturers
JEROS 9120 utensil tray washers are specifically designed for the food production and manufacturing industries.
Clean up with JEROS ultra-efficient commercial utensil tray washers. Save user back strain, and save up to 25% off your power and water consumption.
Constructed of high grade stainless steel throughout, the 9120 washer has a small footprint, is easy to operate, simple to clean and achieves brilliant wash results.
The JEROS Values
Efficiency, optimum hygiene and safety form the core of the JEROS set of values. They are the only manufacturer to have independent bacteriological tests carried out to measure the success of their cleaning systems. All products are tested by Eurofins Steins Laboratorie, a world recognised laboratory.
Winning Features
- This series features a moving wash frame enabling efficient washing from all four sides
- During a wash cycle the wash frame moves forwards and backwards within the cabinet, improving the wash results even more
- Hygienic machine design backed by independent bacteriological testing
- Lid opens fully to allow easy 3-way 180° operation and loading without causing operator back strain
- Self-cleaning ""Duo Micro"" Filter system
- Rinse pump guarantees a constant 85°C temperature during the entire rinse period for superior utensil sanitisation
- Fully automated detergent dispenser ensures the optimum dosage of soap
- High temperature rinse aids fast drying by evaporation, and rinse aid can be added automatically
- Optional Built-in mixer tap
- Easy install and suitable for corners and small spaces
- Energy and water efficiency features
- All machines feature water saving rinse nozzles
- "ECO wash" programme for less soiled objects
- Machines wash at a reduced temperature and use less soap
- "Auto off" setting to avoid machines being unnecessarily left in standby mode
- Unique double filtration system, with a progressive micro-fine filter, for efficient wash water filtration
- A perfect wash result with less soap consumption and minimal water consumption
The integrated drain pump removes all the water from the machine, including the pipe system and drain, to eliminate the risk of bacteria and odours. In addition, water is removed from the top and bottom of the water level in each washing process; this technique ensures cleaner wash water, thus reducing water consumption.
Contact us for more on how JEROS systems can improve hygiene, safety and efficiency in your production kitchen.
(JE9120)
SKU | JE9120 |
Type | Jeros Utensil Washer |
Category | UTENSIL WASHERS |
Highlights for 9120 | - Hygienic machine Design - Self-cleaning "Dou Micro" Filtersystem - Energy saving, up to 25 % - Enviroment friendly "Eco Wash" - Higher/Larger wash volumen as option - New userfriendly control panel - Auto-Off function |
Fuse | 32 Amp |
Motor protecting switch | Yes |
Wash area(WxHxD) mm | 1010 x 645 x 635 |
Outer dimensions - H1xH2xWxD mm | 2100 x 1631 x 1280 x 855 |
Euronorm crates 400x600mm | 2 |
Trays per wash 600x400mm | 30 |
Trays per wash 600x460 | 15 |
Trays per wash 600 x 800 mm | 15 |
Gastronorm tray 500x500 | 2 |
Water connection temperature (ºC) | Ca 56° |
Washing tank - Content in litres | 86 L |
Water consumption per wash | 10 L |
Washing pump capacity (L) / min | 2X600 L |
Washing water temperature | 58°C |
Washing pressure in nozzles | 0.8 - 1.2 Bar |
Washing pump size | 2 x 1.4 Kw |
Rinsing water tank content | 25 L |
Rinsing water temperature | 85°C |
Connection (output - Kw) | 13.5Kw |
Voltage standard | 3N~400V + PE 50Hz |
Shipping Weight | 290 kg |
Shipping Width | 1.500 m |
Shipping Height | 1.860 m |
Shipping Length | 1.060 m |
Shipping Cubic | 2.957400000m3 |
40 L Bowl H 457 x Ø 514mm | 1 |
60 L Bowl H 511 X Ø 575 | 1 |
80 L bowl H 515 x Ø 645mm | 1 |
Eco Wash | Yes |
Duo Micro Filter | Yes |
Insulated lid, wash- & rinse tank | Yes |
OPTIONS 1 | Water connection hose (½"1600mm) |
OPTIONS 2 | Automatic soap dosage |
OPTIONS 3 | Integrated mixing tap |
OPTIONS 4 | Integrated shower tap |
OPTIONS 5 | Rinsehose |
Washing system | Washingframe |
Washing programmes | 3 - Preprogrammed to 3, 3 and 6 minutes. This function is adjustable |
Rinsing system | Rinsingframe |
Dimensions HxWxD(closed) | 1631x1280x745mm |
Dimensions HxWxD(open) | 2088x1280x745mm |
Euronorm crates (Variable)*x400x600mm | 2 |
Trays 600x800mm | 14 |
Trays 600x400mm | 28 |
Trays 605x460mm(DK standard) | 28 |
Baskets 500x500mm | 2 |

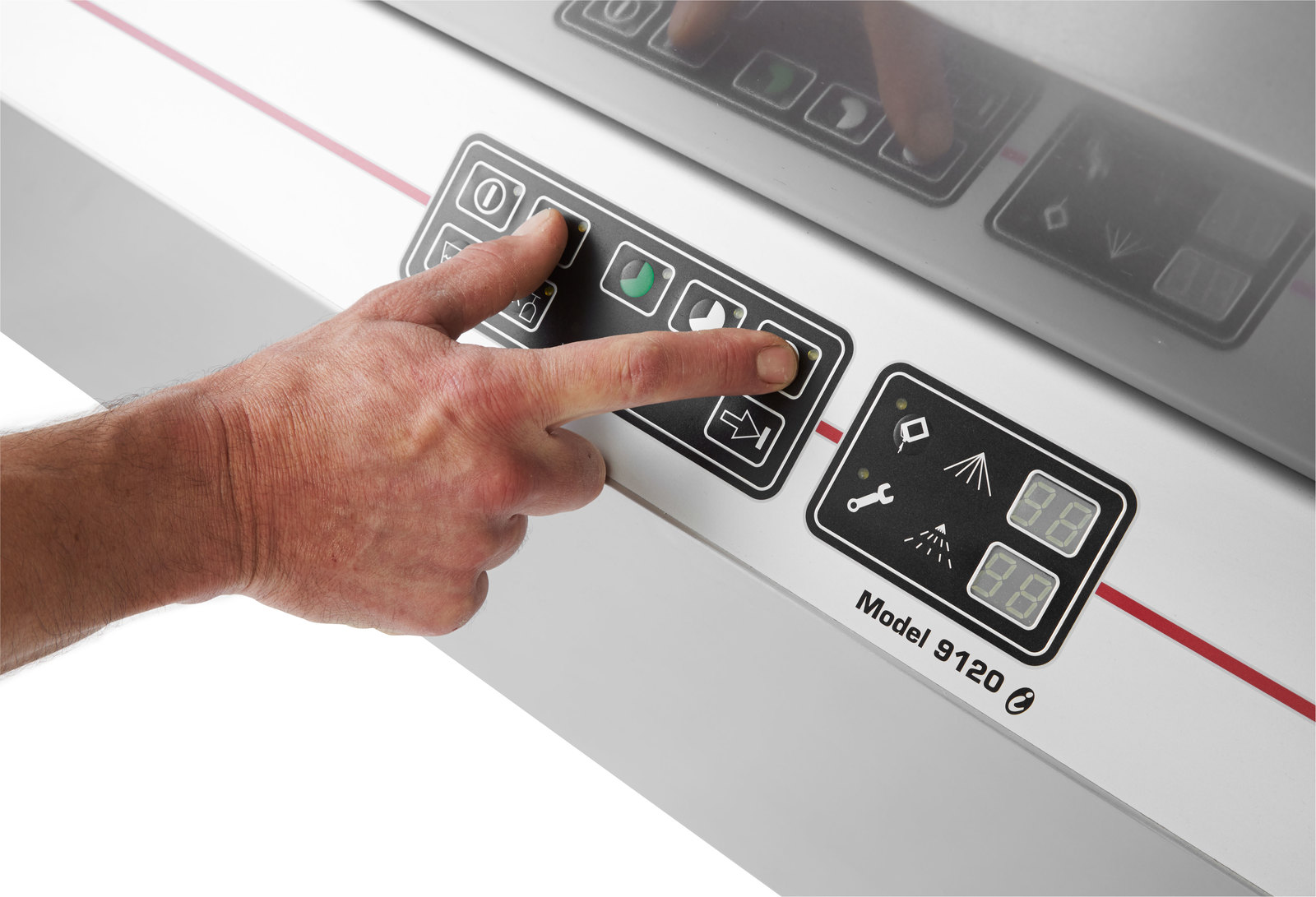

Finger touch panel | Yes |
Number of heating elements | 3 |
Connection ,Ampere | 20A |
Connection cable (standard) | 3N5x2.5"x2500 mm |
Number of filters | 2 |
Drain dimension | 40mm |
Production material | Stainless Steel |
Number of washing nozzles | 60 |
Rinsing pump size | 0,37 kW |
Rinsing pump capacity | 350 L/min |
Rinsing time | approx. 20 sec |
Rinsing nozzles | 24 |
Rinse pressure | 1,1 bar |
Net weight(without water) | 225 Kg |
Gross weight(without water) | 250 Kg |
Noise level | 70 dB(a) |
Feeding height | 905mm |
Accessible from how many sides? | 3 |
Standby/power saver | The watertemperature is adjustable and can be lowered, and hereby lowering the powerconsumption |
Micro control | Mark 3 |
Emptying program | Yes |
40 L (457x514mm) | 2 |
60 L (511x575mm) | 1 |
Water softener | Yes |
Insulated lid | Inclusive |
Insulated tank | Inclusive |
Automatic soap dosage | Yes |
Integrated mixing tap | Yes |
End rinse pump | Inklusiv |
Flush hose | Yes |
Integrated shower tap | Yes |
Automatic lid opening system | Yes |
Water connection hose | Yes |
Extra Height | Yes |
Decorating bag frame | Yes |
Tray rack for 7 trays | Yes |
Tray rack for 15 trays | Yes |
Basket for small objects (500x500mm) | Yes |
Basket for glasses/cups (500x500mm) | Yes |
Plate basket (500x500mm) | Yes |
Basket for small objects (250x250mm) | Yes |
Cutlery basket | Yes |
Cutlery basket 8 rooms (250x500mm) | Yes |
Wire mesh basket (650x530x160mm) | Yes |
Drip tray front complete (adapted individually) | Yes |
Wheels | Yes |
Pre-wash table (customisable) | Yes |
Prerinsing sink (customisable) | Yes |
Rinse shower "Mora"" | Yes |
Mixertap "Mora"" | Yes |
Wall mixer tap "Mora" | Yes |
Shipping Weight | 290.0000kg |
Shipping Width | 1.500m |
Shipping Height | 1.860m |
Shipping Length | 1.060m |
Shipping Cubic | 2.957400000m3 |
