Model No: Optimix100L

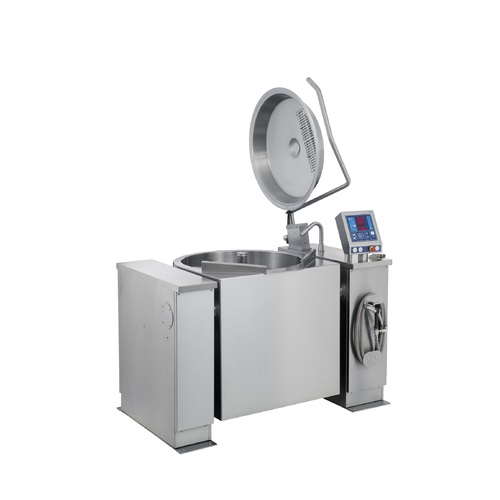

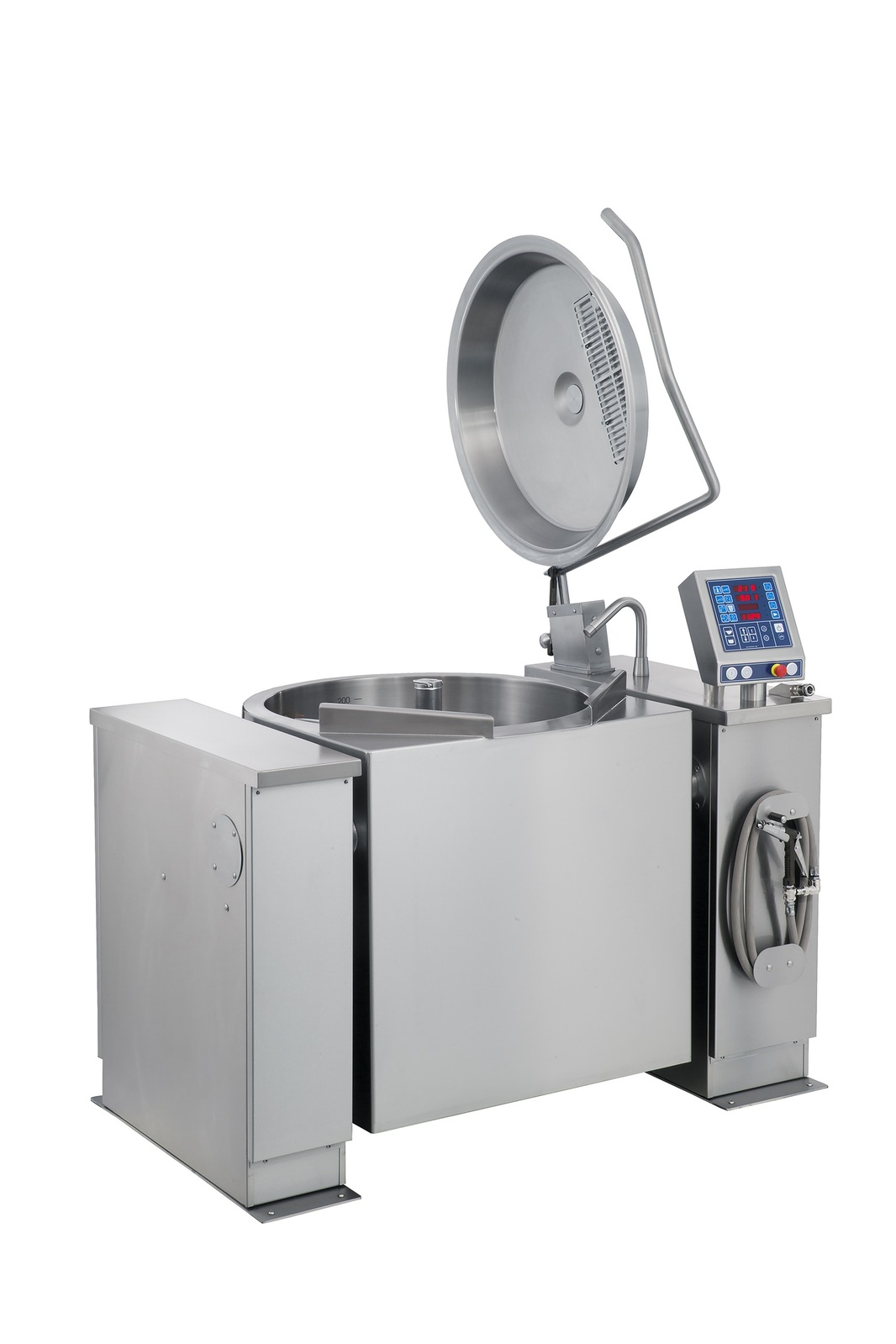

Joni Optimix 100L Steam Jacketed Mixing Kettle
Perfect for cooking and mixing stocks, soups, reductions, sauces, preserves, pastry fillings and more
Joni OptiMix 100L steam jacketed mixing kettle is an ergonomic batch cooking workhorse with a powerful electric tilt function.
Cook, mix, mash and even chill as an option.
The combination of a stirrer, extra tilting height and an easy-open lid, makes the OptiMix the most ergonomic solution on the market. Reduce labour, maximise productivity and efficiency.
One of a kind construction
Joni kettles are unique in their seamless engineering. One piece welded high grade stainless steel construction with no manufacturing joins inside the bell, and no stirrer joints in the food area. Incredibly durable, hygienic, easy to maintain and built to last.
Winning Features
- Integrated stirrer with 7 dynamic stirring patterns
- Advanced digital controls with infinitely variable temperature
- 1.0 bar working pressure
- Stepless stirring speed
- Electric tilt function
- Minimum tilt height of 600mm
- Time controlled water-filling
- Timer & isolator switch
- Quick and easy to use, empty and clean
- Unheated, insulated top with inspection hatch
- Seamless construction
- Several kettles can be linked together
- Auto-filling steam generator Kettles are supplied as standard with a lightweight tight-closing lid for added safety and efficiency
The OptiMix steam jacketed kettles are available in multiple litre capacities from 40L through to 300L and can be supplied as a steam or electric heated kettle.
Optimix 100L Standard AutoTemp 56 Control Features
- Electric tilt with TiltBack function
- Electronic control of food temperature
- 9 Dynamic heating power steps for gentle heating
- 7 Dynamic stirring patterns with reversal & variable speeds
- 15 programmes with storage of 10 sets of data
- Clock and Timer
- PowerMix & SlowMix (Option)
- Water Level Automatic
- Pressure or overheating indicator
- Automatic steam water level control
- Adjustable pillar control box
OptiMix kettles can be fitted with optional additional functions and a range of accessories.
(Optimix100L)
SKU | Optimix100L |
Type | Joni OptiMix |
Name | OptiMix 100 L |
Category | Kettle |
Type | OptiMix |
Construction | Stainless steel |
Working pressure | 1.0 bar |
Max. steam temperature | 120° C |
Max, temperature on outside of kettle bowl | Less 40° C |
Working height | 900 mm |
Max. cooking capacity | 100 litres |
Stirrer speed rpm min-max | 5-155 |
Weight (kg) | 271 |
Dimensions W x D x H (mm) | 1375 x 865 x 1825 |
Power connection | 3 Phase, 400V, 50Hz, |
Rated power (kw) | 21.10 |
Current consumption (A) | 3 x 33 |
Time to boil water 10°-90° C (min) | app. 28 |
Water connection | ½", 1.5-6 bar, 35L/min |
AutoTemp 02e Control | Standard |
AutoTemp 11 Control | Option |
AutoTemp 31 Control | Option |
Butterfly valve | Option |
Sieve plate | Option |
Spray gun | Option |
MultiClean | Option |
Chilling | Option |
Shipping Weight | 291.0000kg |
Shipping Width | 1.635m |
Shipping Height | 1.500m |
Shipping Length | 1.250m |
Shipping Cubic | 3.070000000m3 |
