Model No: MultiMix400L

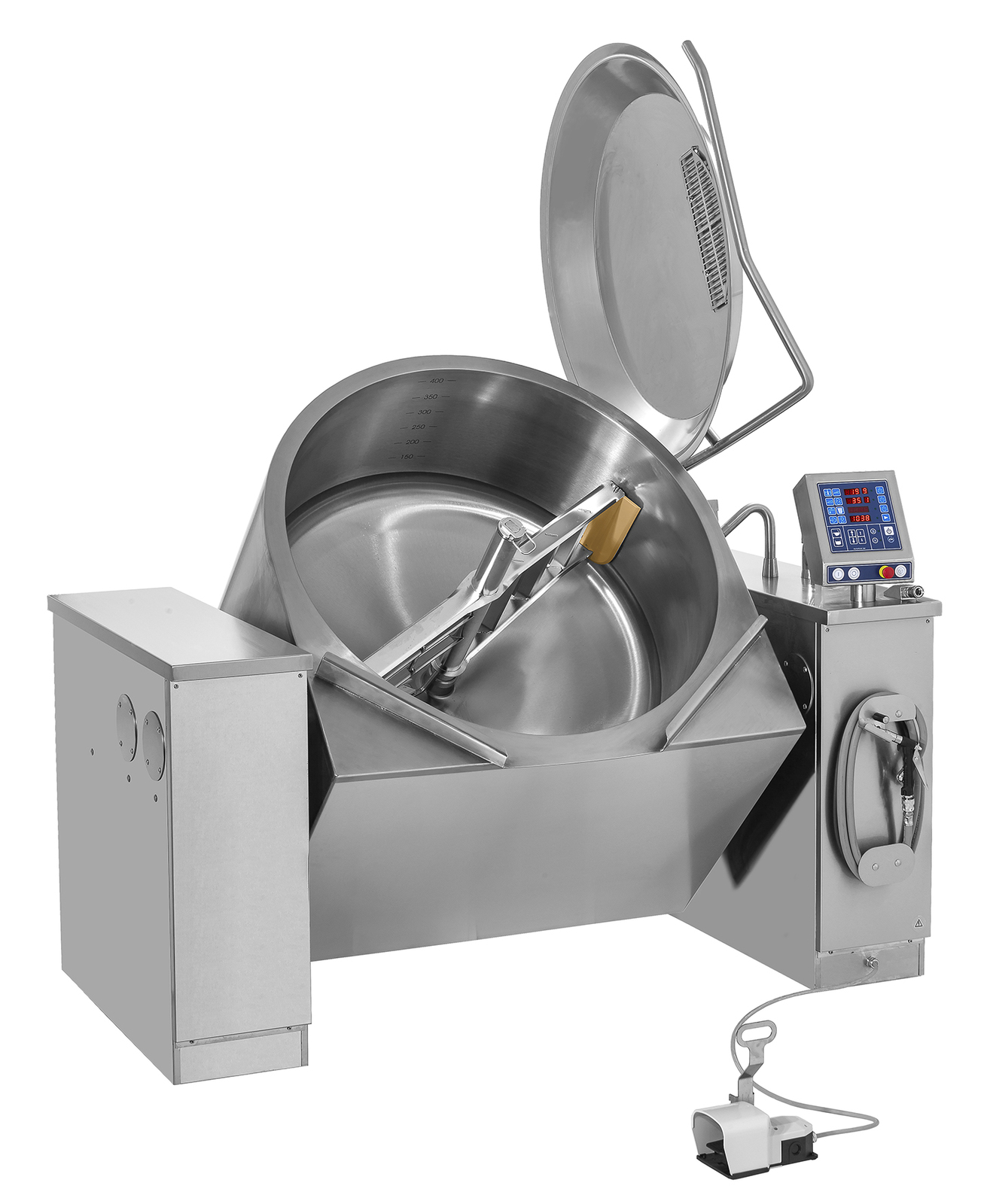

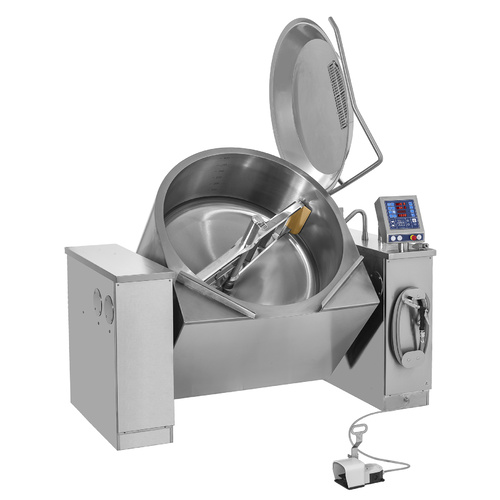

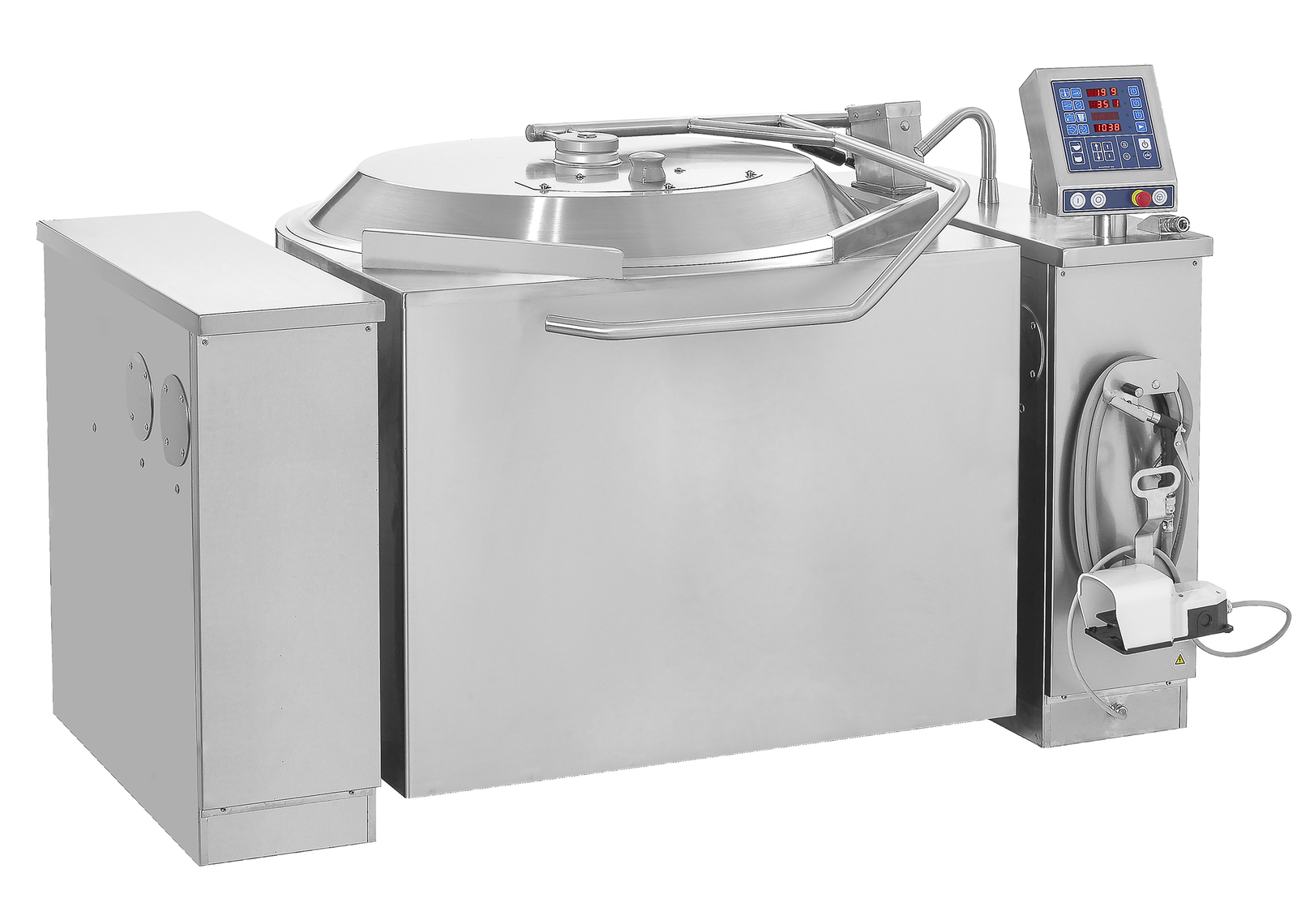

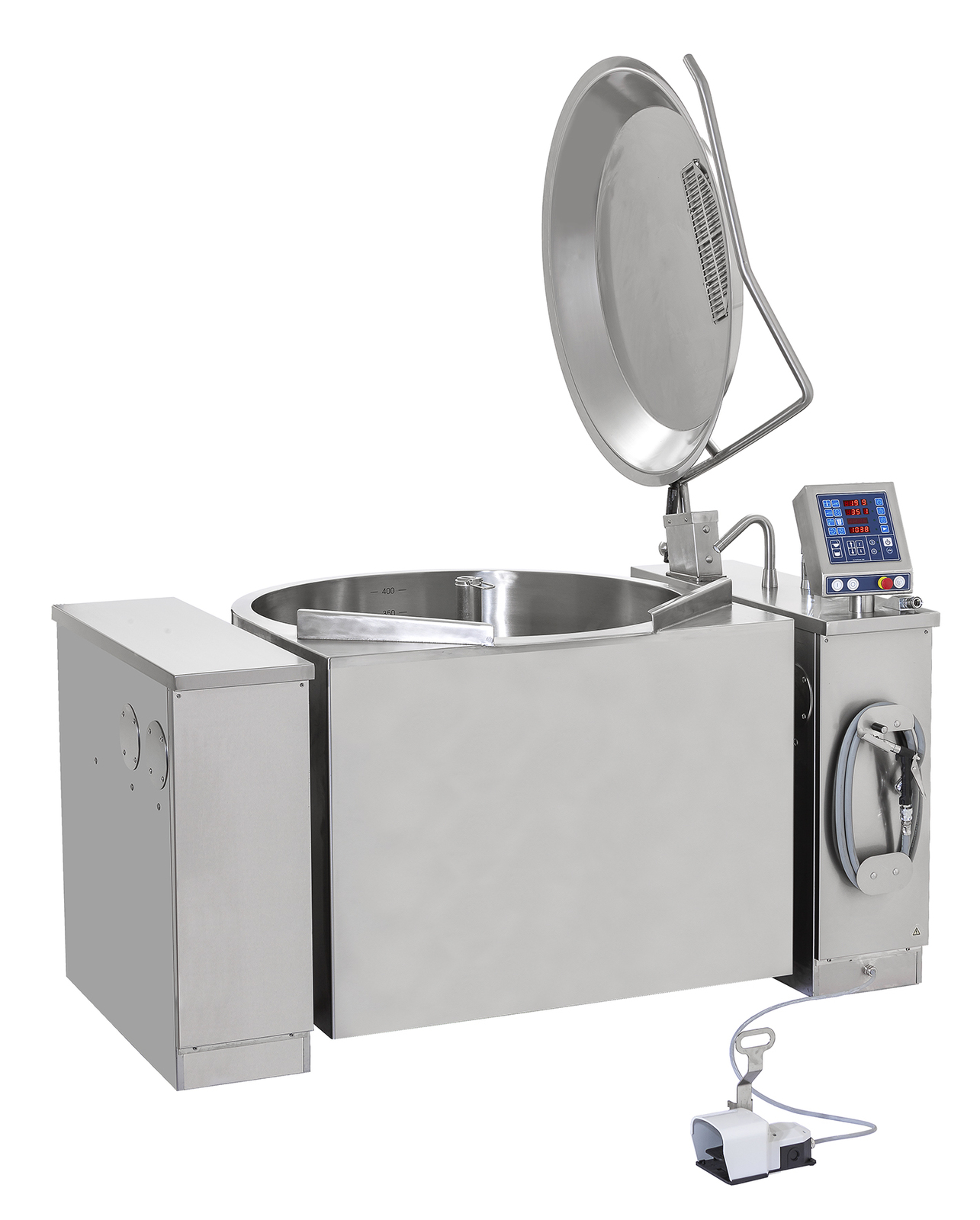

Joni MaxiMix 400L Electric Steam Jacketed Mixing Kettle

The MultiMix meets the requirements for advanced functions in a user-friendly kettle with a powerful stirrer.

Kettles from 40 to 500 litres and the option to link the MultiMix with the Multi, Opti and OptiMix make the MultiMix an obvious choice for kitchens seeking laboursaving functions and user-friendly solutions. A minimum tilt height of 400 mm makes serving simple and also makes the MultiMix ideal for high output kitchens.

The kettle is available with nominal volumes of 40, 60, 80, 100, 120, 150, 200, 250, 300, 400 and 500 litres and the integration of the powerful stirrer is the perfect solution in terms of ease of use, hygiene and ergonomics when stirring is required. The MultiMix is supplied as standard with AutoTemp 35 control, which includes:-

  • electric tilt with TiltBack,
  • digital control and display of the inner kettle temperature,
  • stirrer control,
  • an electronic water flow meter,
  • a clock with an alarm function and
  • Water-Level-Automatic.

As an option the kettle is available with AutoTemp 55 control, which also includes:-

  • food temperature control,
  • nine dynamic heating steps and
  • ten programs, of which five require chilling to be selected as an option.

Ten sets of parameters can be saved for each program.

With its fully penetrating stirrer shaft, the kettle has no unhygienic joints around the food and the lifting handle on the stirrer is always clean and easily accessible. The stirrer has six dynamic stirring patterns, which automatically adapt to the speed selected and therefore always operate optimally. The speed can be set to any speed between 5 and 140/155* rpm. A slow rotation speed distributes the heat and treats the food gently, while a fast rotation speed mixes effectively and makes certain dishes lighter.

The powerful stirrer motor provides 164/358/477 Nm and can therefore also stir thick dishes. Among other things, you can mix mincemeat and prepare mashed potato from fresh potatoes in the kettle. For safety reasons, the stirrer will stop when the lid is opened, but thickeners, spices, etc. can be added through the inspection hatch.

With the SlowMix accessory, the stirrer can rotate slowly when the kettle is tilted. This can be used to mix the contents of the kettle during serving.

The stirrer also enables the MultiClean cleaning tool to be fitted, which saves both time and labour when cleaning the kettle.

(MultiMix400L)

SKU MultiMix400L
Type Joni MultiMix
Category Kettle
Type MultiMix
Construction Stainless steel
Working pressure 1.0 bar
Max. steam temperature 120° C
Max, temperature on outside of kettle bowl Less 40° C
Working height 900 mm
Max. cooking capacity 400 litres
Stirrer speed rpm min-max 5-140
Weight (kg) 633
Dimensions W x D x H (mm) 1800 x 1075 x 2244
Power connection 3 Phase, 400V, 50Hz,
Rated power (kw) 63.00
Current consumption (A) 3 x 95
Time to boil water 10°-90° C (min) app. 38
Water connection ½", 1.5-6 bar, 35L/min
AutoTemp 02e Control Standard
AutoTemp 11 Control Option
AutoTemp 31 Control Option
Butterfly valve Option
Sieve plate Option
Spray gun Option
MultiClean Option
Chilling Option
Shipping Weight 683.0000kg
Shipping Width 2.100m
Shipping Height 1.500m
Shipping Length 1.705m
Shipping Cubic 5.370750000m3


Available Accessories
