Model No: Easy40L

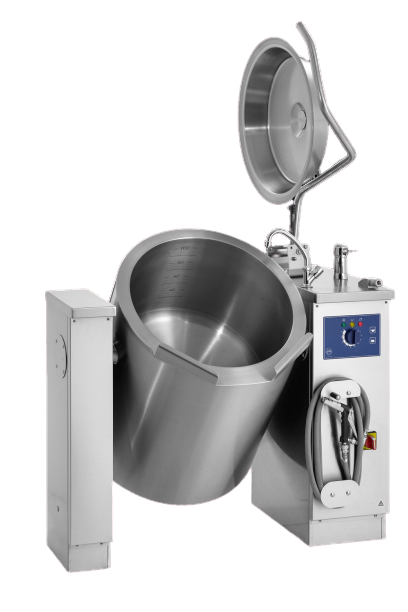

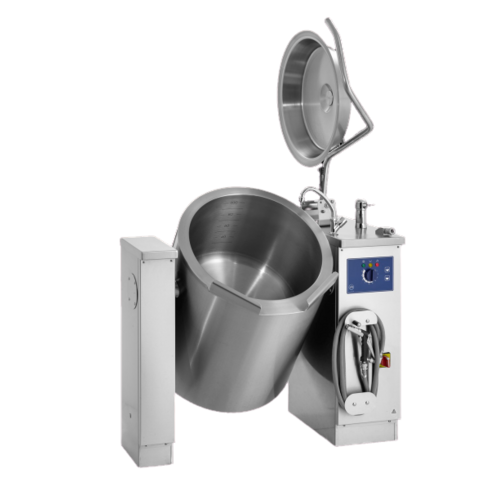

Joni Easy 40L Electric Steam Jacketed Kettle

Perfect for cooking stocks, soups, reductions, boiled veg and dairy

Joni small steam jacketed kettle 40L. Ergonomic user-friendly, high performance non-mixing kettles with electric tilt.


Multiple Easy kettles can be linked together and/or joined with the Joni EasyMix models to better streamline and customise your processes.

One of a kind construction

Joni kettles are unique in their seamless engineering. One piece welded high grade stainless steel construction with no manufacturing joins inside the bell. Incredibly durable, hygienic, easy to maintain and built to last.

Winning Features

  • Electric tilt function
  • Quick and easy to use and empty
  • Unheated, insulated top
  • Easy to clean
  • Seamless construction
  • Several kettles can be linked together
  • Infinitely variable heating
  • Auto-filling steam generator

Available as a fixed install, mobile or stand model

- EasyStand 40L - Supplied on a solid stainless steel four leg frame, no need for a costly fixed install.

- EasyMobile 40L - Mobile kettle mounted on four castors for product that needs to be on the move.

Kettles are supplied as standard with a lightweight tight-closing lid for added safety and efficiency. Ergonomic, quick and easy to empty and maintain. The Easy Joni jacketed kettles can be supplied as a steam or electric heated kettle.

Easy 40L Standard AutoTemp 02e control features

  • Electric tilt with TiltBack function
  • Electronic heat control with dial
  • Cold water tap for filling
  • Digital controls with infinitely variable temperature
  • Pressure or overheating indicator light
  • Automatic steam water level control
  • Adjustable pillar control box

Easy kettles can be fitted with optional additional functions and a range of accessories. Joni Easy tilting jacketed kettles are available in the following Litre volumes: 40L, 50L, 60L, 80L, 100L, 200 L, 250L, 300L.



(Easy40L)

SKU Easy40L
Type Joni Easy
Category Kettle
Type Easy
Construction Stainless steel
Working pressure 1.0 bar
Max. steam temperature 120° C
Max, temperature on outside of kettle bowl Less 40° C
Working height 900 mm
Max. cooking capacity 40 litres
Stirrer speed rpm min-max NA
Weight (kg) 161
Dimensions W x D x H (mm) 1105 x 833 x 1779
Power connection 3 Phase, 400V, 50Hz,
Rated power (kw) 15.00
Current consumption (A) 3 x 22
Time to boil water 10°-90° C (min) app. 23
Water connection ½", 1.5-6 bar, 35L/min
AutoTemp 02e Control Standard
AutoTemp 11 Control Option
AutoTemp 31 Control Option
Butterfly valve Option
Sieve plate Option
Spray gun Option
MultiClean NA
Chilling Option
Shipping Weight 211.0000kg
Shipping Width 1.356m
Shipping Height 1.500m
Shipping Length 1.220m
Shipping Cubic 2.481480000m3


Available Accessories
